製品詳細

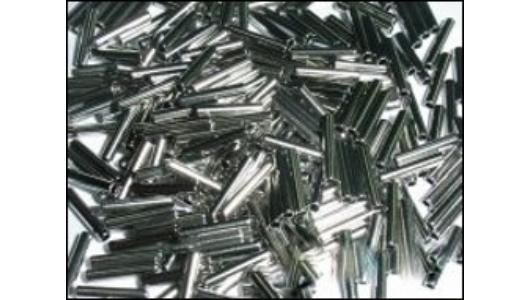

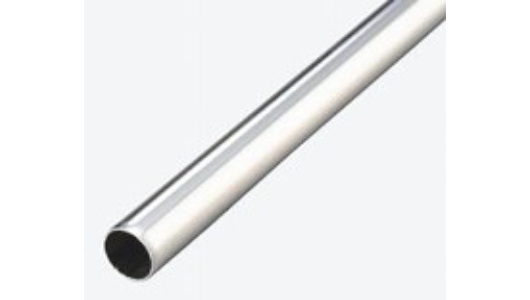

極細、極薄SUSパイプ/規格品
T3985
899
- 特長
- 株式会社ハギテックでは、極細、極薄のSUS304パイプを規格ラインナップしております。内径0.1～mm、外径0.3～10mm迄ラインナップ。指定長にカット等
もご相談可能です。お気軽にお問い合わせ下さい。/在庫サイズは販売ロット、納期等変更になる可能性がありますので都度お問い合わせください。
- 内径
- Min: 0.1mm ～ Max: 4.3mm
- 外径
- Min: 0.3mm ～ Max: 10mm
- 材質
- ステンレス（SUS304）
| 型式 | 外径（φ）mm | 内径(φ） or 肉厚（t)/mm | 標準長さ |
|---|---|---|---|
| 899-SUS304T-φ0.3ｘφ0.1 | φ0.3 | φ0.1 | L=1000mm |
| 899-SUS304T-φ0.3ｘφ0.15 | φ0.3 | φ0.15 | L=1000mm |
| 899-SUS304T-φ0.4ｘφ0.2 | φ0.4 | φ0.2 | L=1000mm |
| 899-SUS304T-φ0.48ｘφ0.23 | φ0.48 | φ0.23 | L=1000mm |
| 899-SUS304T-φ0.5ｘφ0.25 | φ0.5 | φ0.25 | L=1000mm |
| 899-SUS304T-φ0.5ｘφ0.3 | φ0.5 | φ0.3 | L=1000mm |
| 899-SUS304T-φ0.6ｘφ0.3 | φ0.6 | φ0.3 | L=1000mm |
| 899-SUS304T-φ0.6ｘφ0.4 | φ0.6 | φ0.4 | L=1000mm |
| 899-SUS304T-φ0.7ｘφ0.4 | φ0.7 | φ0.4 | L=1000mm |
| 899-SUS304T-φ0.7ｘφ0.5 | φ0.7 | φ0.5 | L=1000mm |
| 899-SUS304T-φ0.8ｘφ0.3 | φ0.8 | φ0.3 | L=1000mm |
| 899-SUS304T-φ0.8ｘφ0.4 | φ0.8 | φ0.4 | L=1000mm |
| 899-SUS304T-φ0.8ｘφ0.5 | φ0.8 | φ0.5 | L=1000mm |
| 899-SUS304T-φ0.8ｘφ0.6 | φ0.8 | φ0.6 | L=1000mm |
| 899-SUS304T-φ0.9ｘφ0.6 | φ0.9 | φ0.6 | L=1000mm |
| 899-SUS304T-φ0.915ｘφ0.41 | φ0.915 | φ0.41 | L=1000mm |
| 899-SUS304T-φ0.92ｘφ0.6 | φ0.92 | φ0.6 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.3 | φ1.0 | φ0.3 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.4 | φ1.0 | φ0.4 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.5 | φ1.0 | φ0.5 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.6 | φ1.0 | φ0.6 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.7 | φ1.0 | φ0.7 | L=1000mm |
| 899-SUS304T-φ1.0ｘφ0.8 | φ1.0 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.3 | φ1.2 | φ0.3 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.4 | φ1.2 | φ0.4 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.5 | φ1.2 | φ0.5 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.6 | φ1.2 | φ0.6 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.7 | φ1.2 | φ0.7 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ0.8 | φ1.2 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.2ｘφ1.0 | φ1.2 | φ1.0 | L=1000mm |
| 899-SUS304T-φ1.3ｘφ0.9 | φ1.3 | φ0.9 | L=1000mm |
| 899-SUS304T-φ1.3ｘφ1.0 | φ1.3 | φ1.0 | L=1000mm |
| 899-SUS304T-φ1.4ｘφ0.8 | φ1.4 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.4ｘφ1.0 | φ1.4 | φ1.0 | L=1000mm |
| 899-SUS304T-φ1.5ｘφ0.5 | φ1.5 | φ0.5 | L=1000mm |
| 899-SUS304T-φ1.5ｘφ0.8 | φ1.5 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.5ｘφ1.0 | φ1.5 | φ1.0 | L=1000mm |
| 899-SUS304T-φ1.5ｘφ1.1 | φ1.5 | φ1.1 | L=1000mm |
| 899-SUS304T-φ1.5ｘφ1.3 | φ1.5 | φ1.3 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ0.6 | φ1.6 | φ0.6 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ0.8 | φ1.6 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ1.0 | φ1.6 | φ1.0 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ1.1 | φ1.6 | φ1.1 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ1.2 | φ1.6 | φ1.2 | L=1000mm |
| 899-SUS304T-φ1.6ｘφ1.3 | φ1.6 | φ1.3 | L=1000mm |
| 899-SUS304T-φ1.7ｘt0.18 | φ1.7 | t0.18 | L=1000mm |
| 899-SUS304T-φ1.7ｘφ0.7 | φ1.7 | φ0.7 | L=1000mm |
| 899-SUS304T-φ1.7ｘφ1.2 | φ1.7 | φ1.2 | L=1000mm |
| 899-SUS304T-φ1.8ｘφ0.8 | φ1.8 | φ0.8 | L=1000mm |
| 899-SUS304T-φ1.8ｘφ1.3 | φ1.8 | φ1.3 | L=1000mm |
| 899-SUS304T-φ1.8ｘφ1.4 | φ1.8 | φ1.4 | L=1000mm |
| 899-SUS304T-φ1.8ｘφ1.5 | φ1.8 | φ1.5 | L=1000mm |
| 899-SUS304T-φ1.8ｘφ1.6 | φ1.8 | φ1.6 | L=1000mm |
| 899-SUS304T-φ1.9ｘφ0.9 | φ1.9 | φ0.9 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ0.5 | φ2.0 | φ0.5 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ0.6 | φ2.0 | φ0.6 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ0.7 | φ2.0 | φ0.7 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ1.0 | φ2.0 | φ1.0 | L=2000mm |
| 899-SUS304T-φ2.0ｘφ1.4 | φ2.0 | φ1.4 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ1.5 | φ2.0 | φ1.5 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ1.6 | φ2.0 | φ1.6 | L=1000mm |
| 899-SUS304T-φ2.0ｘφ1.8 | φ2.0 | φ1.8 | L=1000mm |
| 899-SUS304T-φ2.1ｘφ1.1 | φ2.1 | φ1.1 | L=1000mm |
| 899-SUS304T-φ2.1ｘφ1.7 | φ2.1 | φ1.7 | L=1000mm |
| 899-SUS304T-φ2.2ｘφ1.2 | φ2.2 | φ1.2 | L=1000mm |
| 899-SUS304T-φ2.3ｘt0.23 | φ2.3 | t0.23 | L=1000mm |
| 899-SUS304T-φ2.3ｘφ1.3 | φ2.3 | φ1.3 | L=1000mm |
| 899-SUS304T-φ2.4ｘφ1.4 | φ2.4 | φ1.4 | L=1000mm |
| 899-SUS304T-φ2.5ｘt0.2 | φ2.5 | t0.2 | L=2000mm |
| 899-SUS304T-φ2.5ｘt0.25 | φ2.5 | t0.25 | L=2000mm |
| 899-SUS304T-φ2.5ｘt0.5 | φ2.5 | t0.5 | L=2000mm |
| 899-SUS304T-φ2.5ｘφ0.8 | φ2.5 | φ0.8 | L=1000mm |
| 899-SUS304T-φ2.5ｘφ1.0 | φ2.5 | φ1.0 | L=1000mm |
| 899-SUS304T-φ2.6ｘφ1.6 | φ2.6 | φ1.6 | L=1000mm |
| 899-SUS304T-φ2.7ｘφ1.7 | φ2.7 | φ1.7 | L=1000mm |
| 899-SUS304T-φ2.8ｘφ1.8 | φ2.8 | φ1.8 | L=1000mm |
| 899-SUS304T-φ2.8ｘφ2.4 | φ2.8 | φ2.4 | L=1000mm |
| 899-SUS304T-φ2.9ｘφ1.9 | φ2.9 | φ1.9 | L=1000mm |
| 899-SUS304T-φ2.9ｘφ2.6 | φ2.9 | φ2.6 | L=1000mm |
| 899-SUS304T-φ3.0ｘt0.2 | φ3.0 | t0.2 | L=2000mm |
| 899-SUS304T-φ3.0ｘt0.25 | φ3.0 | t0.25 | L=2000mm |
| 899-SUS304T-φ3.0ｘt0.3 | φ3.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ3.0ｘt0.5 | φ3.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ3.0ｘφ0.4 | φ3.0 | φ0.4 | L=1000mm |
| 899-SUS304T-φ3.0ｘφ0.5 | φ3.0 | φ0.5 | L=2000mm |
| 899-SUS304T-φ3.0ｘφ0.6 | φ3.0 | φ0.6 | L=1000mm |
| 899-SUS304T-φ3.0ｘφ0.8 | φ3.0 | φ0.8 | L=1000mm |
| 899-SUS304T-φ3.0ｘφ1.0 | φ3.0 | φ1.0 | L=2000mm |
| 899-SUS304T-φ3.1ｘφ2.1 | φ3.1 | φ2.1 | L=1000mm |
| 899-SUS304T-φ3.2ｘφ2.2 | φ3.2 | φ2.2 | L=1000mm |
| 899-SUS304T-φ3.3ｘφ2.3 | φ3.3 | φ2.3 | L=1000mm |
| 899-SUS304T-φ3.3ｘφ2.9 | φ3.3 | φ2.9 | L=1000mm |
| 899-SUS304T-φ3.4ｘφ2.4 | φ3.4 | φ2.4 | L=1000mm |
| 899-SUS304T-φ3.5ｘt0.2 | φ3.5 | t0.2 | L=2000mm |
| 899-SUS304T-φ3.5ｘt0.5 | φ3.5 | t0.5 | L=2000mm |
| 899-SUS304T-φ3.6ｘφ2.6 | φ3.6 | φ2.6 | L=1000mm |
| 899-SUS304T-φ3.7ｘφ2.7 | φ3.7 | φ2.7 | L=1000mm |
| 899-SUS304T-φ3.8ｘφ2.8 | φ3.8 | φ2.8 | L=1000mm |
| 899-SUS304T-φ3.9ｘφ2.9 | φ3.9 | φ2.9 | L=1000mm |
| 899-SUS304T-φ4.0ｘt0.2 | φ4.0 | t0.2 | L=2000mm |
| 899-SUS304T-φ4.0ｘt0.3 | φ4.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ4.0ｘt0.5 | φ4.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ4.0ｘt1.0 | φ4.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ4.1ｘφ3.1 | φ4.1 | φ3.1 | L=1000mm |
| 899-SUS304T-φ4.2ｘφ3.2 | φ4.2 | φ3.2 | L=1000mm |
| 899-SUS304T-φ4.3ｘφ3.3 | φ4.3 | φ3.3 | L=1000mm |
| 899-SUS304T-φ4.5ｘt0.3 | φ4.5 | t0.3 | L=2000mm |
| 899-SUS304T-φ4.5ｘt0.5 | φ4.5 | t0.5 | L=2000mm |
| 899-SUS304T-φ4.6ｘφ3.6 | φ4.6 | φ3.6 | L=1000mm |
| 899-SUS304T-φ4.7ｘφ3.7 | φ4.7 | φ3.7 | L=1000mm |
| 899-SUS304T-φ4.7ｘφ4.3 | φ4.7 | φ4.3 | L=1000mm |
| 899-SUS304T-φ5.0ｘt0.2 | φ5.0 | t0.2 | L=2000mm |
| 899-SUS304T-φ5.0ｘt0.3 | φ5.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ5.0ｘt0.5 | φ5.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ5.0ｘt1.0 | φ5.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ5.0ｘt1.5 | φ5.0 | t1.5 | L=2000mm |
| 899-SUS304T-φ6.0ｘt0.2 | φ6.0 | t0.2 | L=2000mm |
| 899-SUS304T-φ6.0ｘt0.3 | φ6.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ6.0ｘt0.5 | φ6.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ6.0ｘt0.8 | φ6.0 | t0.8 | L=4000mm |
| 899-SUS304T-φ6.0ｘt1.0 | φ6.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ6.0ｘt1.2 | φ6.0 | t1.2 | L=4000mm |
| 899-SUS304T-φ6.0ｘt1.5 | φ6.0 | t1.5 | L=4000mm |
| 899-SUS304T-φ6.0ｘt2.0 | φ6.0 | t2.0 | L=4000mm |
| 899-SUS304T-φ6.35ｘt0.5 | φ6.35 | t0.5 | L=4000mm |
| 899-SUS304T-φ6.35ｘt1.0 | φ6.35 | t1.0 | L=4000mm |
| 899-SUS304T-φ6.35ｘt1.5 | φ6.35 | t1.5 | L=4000mm |
| 899-SUS304T-φ7.0ｘt0.3 | φ7.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ7.0ｘt0.5 | φ7.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ7.0ｘt1.0 | φ7.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ8.0ｘt0.3 | φ8.0 | t0.3 | L=2000mm |
| 899-SUS304T-φ8.0ｘt0.5 | φ8.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ8.0ｘt0.8 | φ8.0 | t0.8 | L=4000mm |
| 899-SUS304T-φ8.0ｘt1.0 | φ8.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ8.0ｘt1.5 L=2m | φ8.0 | t1.5 | L=2000mm |
| 899-SUS304T-φ8.0ｘt1.5 L=4m | φ8.0 | t1.5 | L=4000mm |
| 899-SUS304T-φ8.0ｘt2.0 | φ8.0 | t2.0 | L=4000mm |
| 899-SUS304T-φ9.0ｘt0.5 | φ9.0 | t0.5 | L=2000mm |
| 899-SUS304T-φ9.0ｘt1.0 | φ9.0 | t1.0 | L=2000mm |
| 899-SUS304T-φ9.0ｘt1.2 | φ9.0 | t1.2 | L=4000mm |
| 899-SUS304T-φ9.0ｘt1.5 | φ9.0 | t1.5 | L=2000mm |
| 899-SUS304T-φ9.53ｘt1.0 | φ9.53 | t1.0 | L=4000mm |
| 899-SUS304T-φ9.53ｘt1.2 | φ9.53 | t1.2 | L=4000mm |
| 899-SUS304T-φ9.53ｘt1.5 | φ9.53 | t1.5 | L=4000mm |
| 899-SUS304T-φ10ｘt0.3 | φ10 | t0.3 | L=2000mm |
| 899-SUS304T-φ10ｘt0.5 | φ10 | t0.5 | L=2000mm |
| 899-SUS304T-φ10ｘt0.8 | φ10 | t0.8 | L=4000mm |
| 899-SUS304T-φ10ｘt1.0 | φ10 | t1.0 | L=2000mm |
| 899-SUS304T-φ10ｘt1.5 | φ10 | t1.5 | L=4000mm |
| 899-SUS304T-φ10ｘt2.0 | φ10 | t2.0 | L=4000mm |
